Bring the Power of Video to your Self-Serve Carwash!
Now Available in 30, 60, 120, and 240 Frames Per Second Configurations !
Wash Vision™ is a state of the art carwash monitoring system featuring digital recording and remote access for simple and comprehensive video monitoring of your carwash.
Digital recording (local and remote), motion detection, loss of signal, remote monitoring of up to 16 cameras simultaneously, PTZ (pan, tilt, zoom) support, user defined program access, audio recording, scheduler and true multi-user capability are just a few of the many features included in this system.
The Wash Vision™ remote software included with each system gives you the freedom to monitor your business from anywhere in the world. Video signal can be transmitted over standard phone lines, network computers (LAN) and the Internet. The choice is yours.
Industrial Duty System
Wash Vision systems are constructed to withstand harsh environments. Systems utilize steel construction (Not Plastic) and a redundant cooling system with replaceable filters. Host system secures to wall for & Out of the way" operation.
Multiple Viewing Options

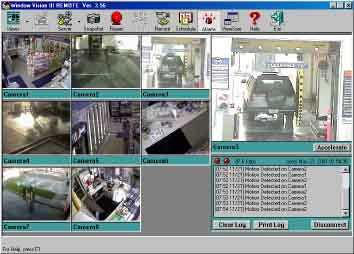

Multi-pane view: Up to 16 cameras displayed simultaneously. Four-pane view: 4 cameras can be displayed simultaneously (in larger format). Single-pane view: A single camera is displayed in maximum size.
View all Cameras Simultaneously
In any view, cameras being displayed may be switched with one click of the mouse. All Views are available on both Host and Remote.
View, Transmit and Record
From 1 to 16 cameras simultaneously.
Remote View<br> Via Phone Lines, Internet (DSL, Cable), and Local Area Network.
Remote Control
Switch camera views, reset alarms, change alarm settings and view files recorded on either the Remote or Host system.
Digital Recording
Record in color or B&W. Up to 16 cameras can be recorded to disk simultaneously and stored in a date/time stamped file for easy retrieval. Both Host and Remote will record to all hard drives. Files are saved in a non-editable, proprietary format for use in court.
4 Different Recording Options
Never again replace a VCR Tape of lose video when a tape ends. Stop: Stop when recording reaches the end of user-defined disk space. Circular Recording: System may be set to go back to the beginning of the files and record over previous recordings so that the last 7 - 30 days will always be maintained. Record Remotely: Remote computer may record incoming video. Record During Transmission: The Host can display and record all cameras while simultaneously transmitting to remote system.
Archiving
Selected sections of recordings may be archived for transfer directly to CDRW.
Snapshot
User may take a "snapshot" from any camera during view, record or playback mode at Host or Remote computer. Snapshots are date/time stamped.
Motion Detection
Each camera detects motion at individually defined levels with no additional hardware required. Cameras can be set to ignore motion in predefined areas by blocking out grid sections.
No Signal Detection
System can be set to alert user when a camera is no longer sending a signal.
Call Out on Alarm
When Motion or No Signal is detected, up to 2 phone numbers and 1 pager number can be called and a notification message will be played. Call will be placed until alarms have been reset. Alarms may be shut off at the Remote or Host computer.
Audio
Record audio from one location on the Host system.
User Defined Password Protection
Both Host and Remote have Administrator Password Protection. Additionally, Unlimited Users can be added to the Host. Each User can be given permission to specific program access and camera views.
Multiple User Licensing
Optional Multiple User licensing is available. The multi-user license allows more than one simultaneous remote connection.
10x Digital Pan/Tilt/Zoom
All cameras have Digital PTZ support.
PTZ Camera Support
Host and Remote control of PTZ cameras. Pelco, Kaletel, Sensormatic and other PTZ protocols are supported.
Scheduled Events
The scheduler automatically enable/disables motion detection, recording, remote access, etc. This easy to use interface adds flexibility to an already intuitive system.
Individual Camera Configuration
Each camera may be adjusted individually for video gain and video offset which affects brightness and contrast.
Status Log
Status Log is provided on both Host and Remote systems. Displays and prints recent events.
Accelerate Feature
Applies maximum frame rate to the selected camera. Other cameras are displayed at a slower frame rate. The system restores previous camera settings when decelerated.
Simultaneous Operation of all features
Play Back Viewing program included
Freely distributable Remote Access program
1 to 16 camera systems
7, 14, 21, 30 day or more retention
