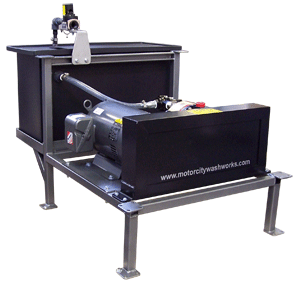

HIGH PRESSURE PUMP STATION 15HP20GPM
High Pressure Pump Station, delivers 18 gpm @ 1,000 psi with a Wanner H25 diaphragm pump belt-driven by a 15 HP 3 phase electric motor. Rugged 2" square tubing steel framework is galvanized and then powder-coated metallic gray for a durable, long-lasting service life. Two single pump stations are stackable in order to conserve space in the equipment room. Our pump station also features a plastic flooded suction tank with a lid, Dema float valve, overflow protection, pressure guage, unloader/pressure regualtor valve with recirculation hose back to the suction tank, safety guard, and a one year warranty. Ships on a skid common carrier.
