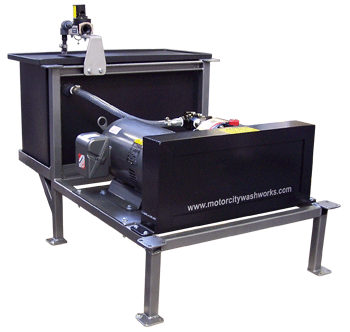

This High Pressure Pumping Station is designed with a Wanner D10 Hydra-Cell diaphragm pump belt-driven by a 7.5 H.P. 3 phase electric motor to deliver 9 gpm @ 1,100 psi. This pump is capable of pumping either fresh water or filtered reclaim water. Typical uses are prep arches, prep guns, side/top blasters. Rugged 2" square tubing steel framework is galvanized and then powder-coated metallic gray for a durable, long-lasting service life. One smaller pump station is stackable on top of this pump station in order to conserve space in the equipment room. Our pump station also features a plastic flooded suction tank with a lid, Dema float valve, overflow protection, pressure guage, unloader/pressure regualtor valve with recirculation hose back to the suction tank, safety guard, and a one year warranty. Ships on a skid common carrier.
